Micro-D Series MDM Micro Rectangular Connector J30J-21TJL-A3 Male Plug 21 Pin Connector Equipped With A3 Wire Clamp And Nylon Protective Sleeve
This finished wire harness is assembled with theJ30J-21TJL-A3 21-pin male rectangular plug, paired with original A3 metal cable clamps and full-length polyamide braided sleeves for comprehensive cable protection and stable performance.The 21-pin male plug has a stainless steel housing, featuring high mechanical strength, rust and corrosion resistance, and superior EMI shielding to isolate external interference. Its 21 silver-plated crimp contacts ensure low-resistance, stable conductivity for simultaneous multi-signal transmission.The dedicated A3 metal cable clamp locks the cable firmly to the plug, dispersing tensile stress and preventing pin pull-out or wire breakage, thus extending the harness service life.
Product display
Product Performance Details
| Product model |
J30J-21TJL-A3 |
Contact resistance |
≤10mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Medium pressure resistance |
800V |
| Random vibration |
Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G |
Mechanical life |
500 times |
| Impact |
735m/s2 11ms |
Rated current |
3 A |

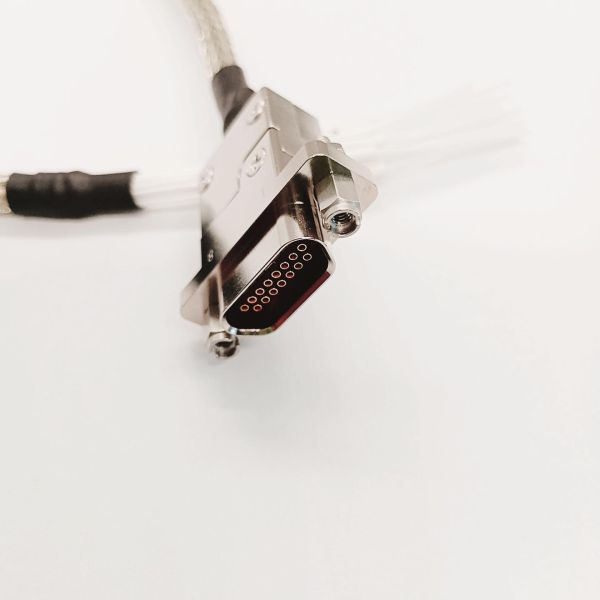

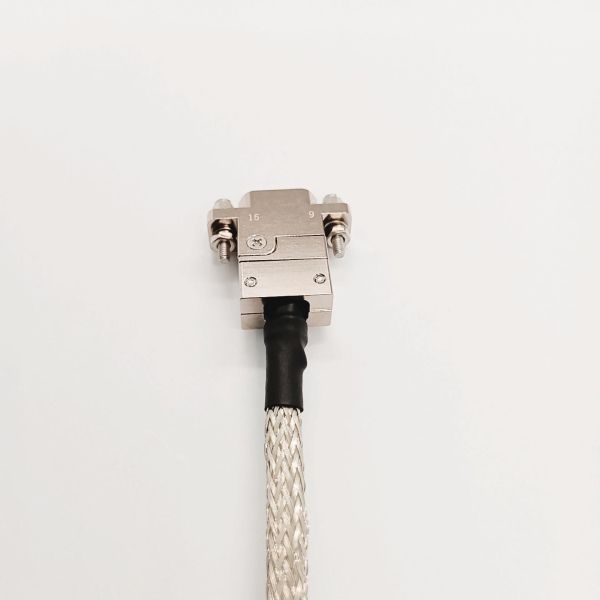

Physical product display
Related product recommendations
Product selection reference

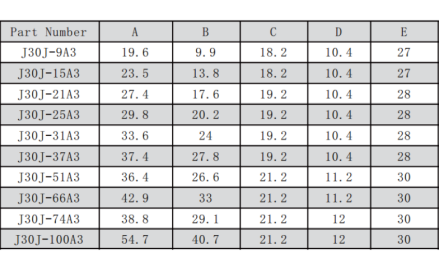

Shell size

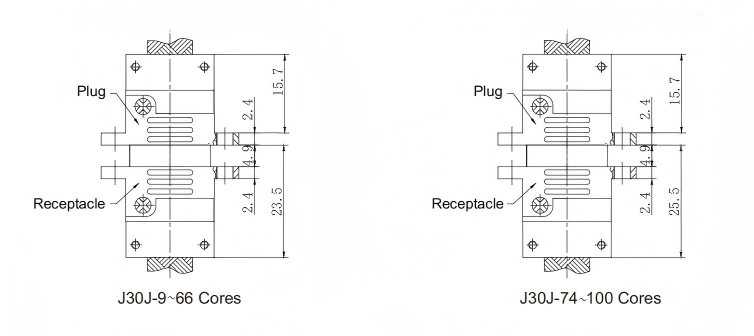

Appearance diagram after matching
Display of strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
