Micro-miniature Connectors J30J Series Connector J30J-21TJP Male Plug 15 Pin Aluminum Alloy Shell Connector
J30J-21TJP is a compact 15-position rectangular connector with gold-plated male crimp pins for low-resistance signal transmission. Stable locking resists vibration, operates from -55℃ to 125℃, ideal for aerospace, instruments and control modules. Customization is supported.
Product display
Product Performance Details
| Product model |
J30J-21TJP-20cm |
Contact resistance |
≤10mΩ |
| Ambient temperature |
-55℃~+125℃ |
Insulation resistance |
≥5000MΩ |
| Vibration |
10Hz~2000Hz 196m/s2 |
Medium pressure resistance |
800V |
| Random vibration |
Power spectral density is 0.4G2 /Hz and the root mean square value of the total acceleration rate is 23.1G |
Mechanical life |
500 times |
| Impact |
735m/s2 11ms |
Rated current |
3 A |

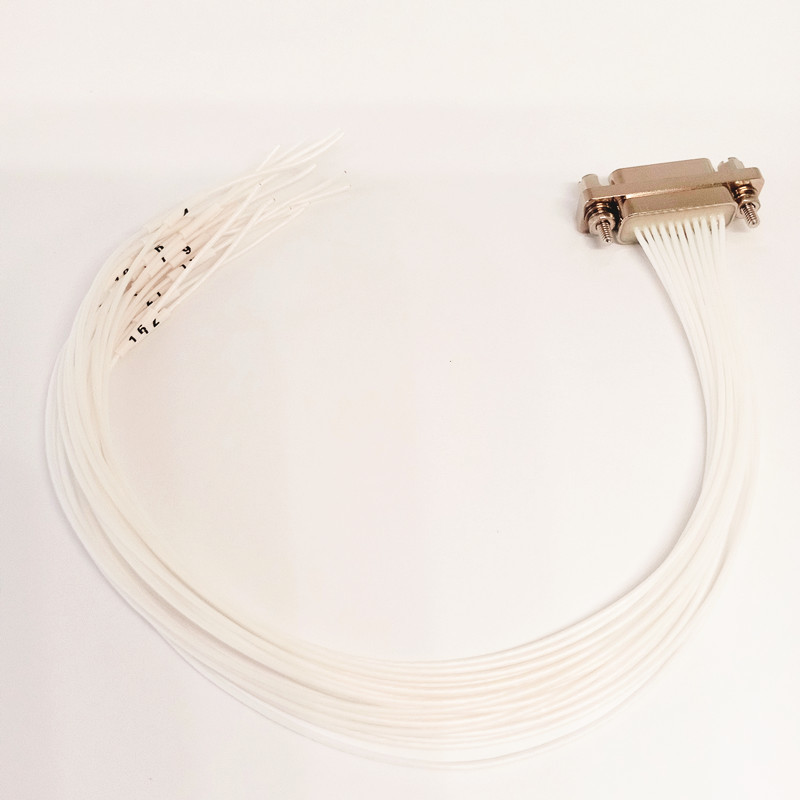

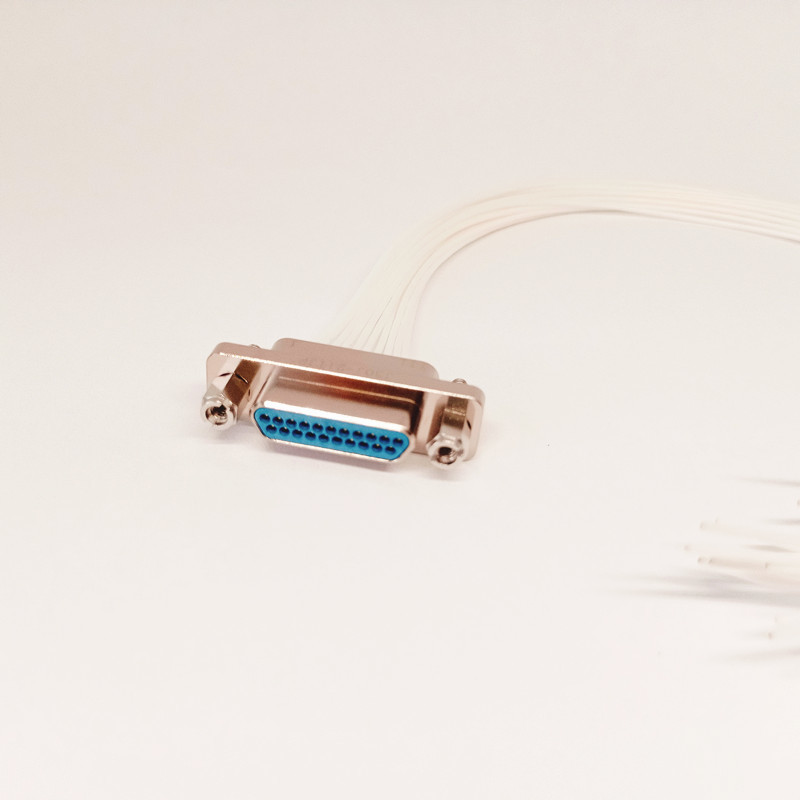

Physical product display
Product appearance drawing
Related product recommendations

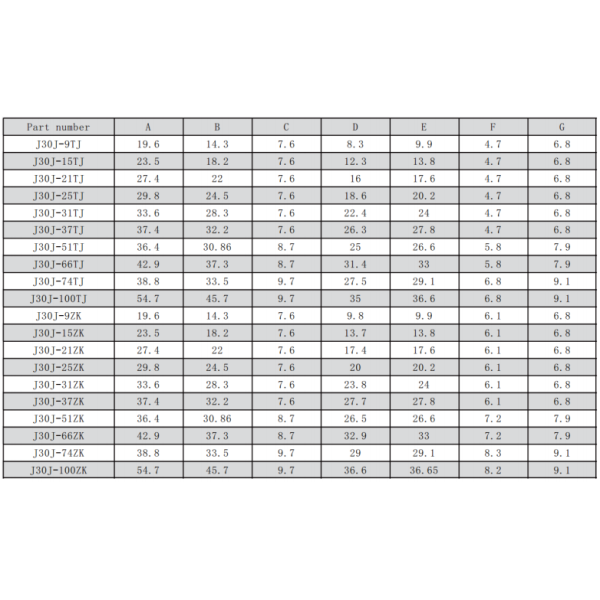

Product selection reference
Shell size
Appearance diagram after matching
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
